NEW GENERATION
TOGGLE CLAMPS

For Product Information CallMJ Vail Company

DE STA CO Industries Newest Patented Technology

These clamps deliver two to three times the holding capacity of our legacy models in the same envelope. Now you can save valuable space in all your application without sacrificing holding capacity or clamp performance. Open U-Bar has a knob on the end to prevent the spindle from slipping off the end of the arm. Unique design delivers greater hand clearance in the open position eliminating pinch points and improving safety and ergonomics. Clamp comes complete with ergonomic handle trip and two flanged washers. Spindle assembly not supplied.

Model Flanged
Washer
(Supplied) 		Spindle
Size
(Optional)
2002-U 215105 1/4 or M6
2007-U 507107 5/16 or M8
2010-U 235106 3/8 or M10
Model
No. 		Dim (C/L to C/L in inches)
Base Pivot to		 Max. Mechanical
Advantage (M.A.) at		 Max. Holding
Capacity (lbs.) at		 Force Applied to Handle at D
Spindle
Loc. A		 Spindle
Loc. C		 Spindle
Loc. A		 Spindle
Loc. C		 Spindle
Loc. A		 Spindle
Loc. C
2002-U 1.45 2.65 11.1:1 5.1:1 600 295 0.50
2007-U 1.95 3.92 10:1 5.3:1 1000 470 1.25
2010-U 2.44 4.88 13:01 6:01 1400 720 1.00
Model
No. 		EDP
No. 		Holding
Capacity 		Weight Dimensions

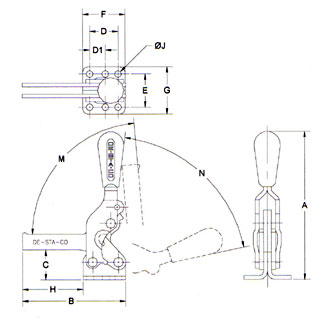

A B C D D1 E F G H J M N
2002-U 52002 600 lbs. .48 lbs. 4.73 3.29 0.95 0.90 0.50 1.06 1.36 1.52 1.93 0.22 85° 71°
2007-U 52007 1000 lbs. 1.2 lbs. 7.21 4.81 1.25 1.25 0.75 1.25 1.93 1.94 2.88 0.28 76° 65°
2010-U 52001 1400 lbs. 2.56 lbs. 9.00 6.09 1.7 1.25 - 1.78 2.53 2.62 3.56 0.34 83° 69°
