SERIES 205
The smallest of the horizontal handle, horizontal bar clamps. Supplied with bonded neoprene-tipped M4 spindle assembly (205208-M). Flanged washers (105106) supplied with “U” bar models. Stainless steel models supplied with stainless steel hex-head spindle assembly (205943). Handle grip supplied on the non-stainless clamps only.
| ALSO AVAILABLE | ||
| In Stainless Steel | Model
205-SSS Model 205-USS |
Click here to go to page. |
| Model No. |
EDP No. |
Holding Capacity |
Weight | Handle Moves |
Bar Opens |

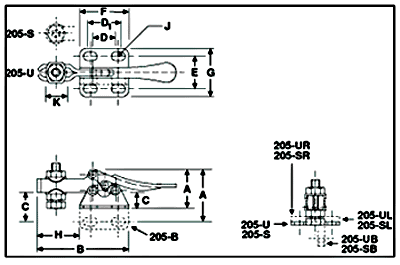

Dimensions | |||||||||
| A | B | C | D | E | F | G | H | J/SLOT | K | ||||||
| 205-S | 52060 | 60 lbs. | .06 lbs. | 80° | 90° | .72 | 2.75 | .41 | .44 | .63 | .94 | .94 | .83 | .17 X .27 | - |
| 205-SB | 52062 | 60 lbs. | .06 lbs. | 80° | 90° | .84 | 2.75 | .63 | .44 | - | .94 | - | .83 | .17 X .27 | - |
| 205-SL | 52066 | 60 lbs. | .06 lbs. | 80° | 90° | .72 | 2.75 | .41 | .44 | - | .94 | - | .83 | .17 X .27 | - |
| 205-SR | 52065 | 60 lbs. | .06 lbs. | 80° | 90° | .72 | 2.75 | .41 | .44 | - | .94 | - | .83 | .17 X .27 | - |
| 205-U | 52050 | 60 lbs. | .06 lbs. | 80° | 90° | .72 | 2.66 | .31 | .44 | .63 | .94 | .94 | .69 | .17 X .27 | .38 |
| 205-UB | 52052 | 60 lbs. | .06 lbs. | 80° | 90° | .84 | 2.66 | .53 | .44 | - | .94 | - | .69 | .17 X .27 | .38 |
| 205-UL | 52056 | 60 lbs. | .06 lbs. | 80° | 90° | .72 | 2.66 | .31 | .44 | - | .94 | - | .69 | .17 X .27 | .38 |
| 205-UR | 52055 | 60 lbs. | .06 lbs. | 80° | 90° | .72 | 2.66 | .31 | .44 | - | .94 | - | .69 | .17 X .27 | .38 |
 52050 Model 205-U U bar Flanged base |
 52060 Model 205-S Solid bar Flanged base |
 52062 Model 205-SB Solid bar Straight base |
 52066 Model 205-SL Solid bar Left flanged base |
 52065 Model 205-SR Solid bar Right Flanged base |
 52052 Model 205-UB U bar Straight base |
 52056 Model 205-UL U bar Left flanged base |
 52055 Model 205-UR U bar Right flanged base |
