Machinery Mounts Series (661 Series)
Dimensions & Performance Characteristics

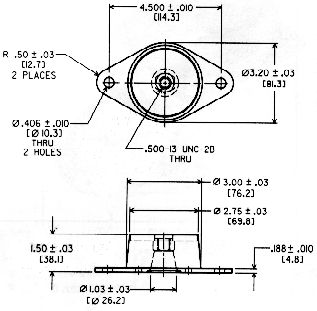

661 Series Dimensional Drawing

661 Series Load vs. Deflection


661 Series Load Ranges
Part # Maximum Static Load/Isolator (lbs.)
661-30 300
661-45 450
661-55 550
661-70 700
Barry Controls Machinery Mounts
